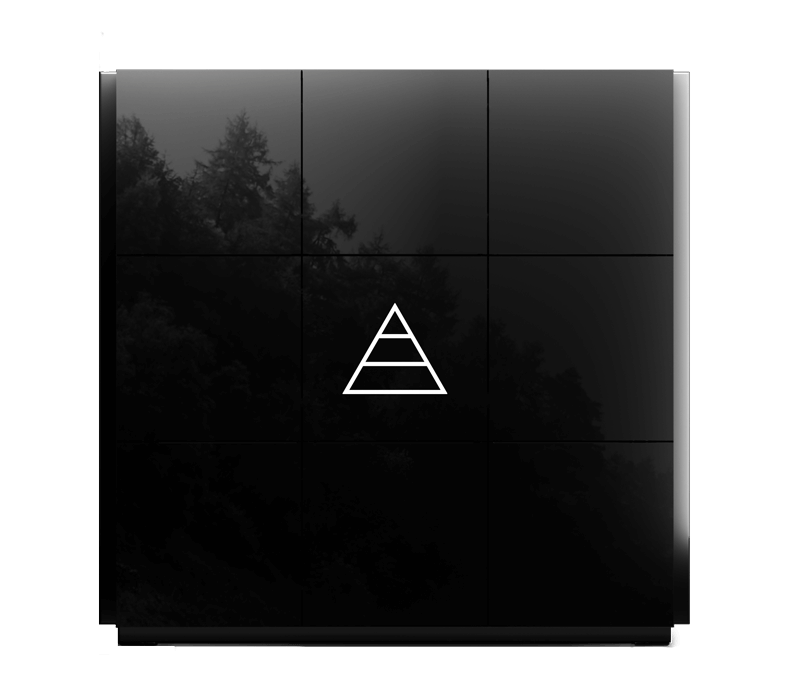

DYNAMO CUBO

The power of nature

Overview

icon
Turn sunlight into electricity with the photovoltaic system
icon
Can be integrated with heat pump thermal systems for heating and cooling
icon
Stores excess energy thanks to built-in batteries

Overview

Renewable energy for a better future

Dynamo Cubo makes the best use of the energy of the sun and the richness of the earth, giving comfort, independence and efficiency.

The machine is designed to work perfectly both in winter, providing heat for heating and domestic hot water, and in summer, subtracting heat from the indoor environments by cooling them and at the same time continuing to produce domestic hot water.

Energy power

23.98kWp

Peak electrical power produced

21000kWh

Estimated annual production

Energy power

The smart way to power your building

The Dynamo Cubo is able to air condition in heat and cool an area of about one thousand square meters of an energy building in class A, to produce domestic hot water for the daily use of 20 people and to produce electricity covering up to the entire needs of the building, if necessary.

Thanks to its repeatability, it can make even large buildings independent. The use of the Cube, compared to a traditional energy system, can avoid the annual emission of about 30 tons of CO2.

Compare models:

CUBO M

CUBO L

CUBO XL

Peak electrical power produced

5.53 kWp

12.60 kWp

23.98 kWp

Electrical storage with storage batteries

10 kWh

10 kWh

20 kWh

Thermal power for heating integration with heat pump

50 kW

100 kW

200 kW

Thermal power for cooling integration with heat pump

50 kW

100 kW

200 kW

Request your free consultation

How it works

icon
Electrical energy
icon
Heating and cooling
icon
Hot water

How it works

`

The Dynamo Cube combines multiple technologies to use natural sources and produce energy.

During the heating cycle, the heat pump acquires thermal energy from the solar panels, while during the summer the heat pump reverses its cycle, considering the environment to be air-conditioned as a hot source from which to subtract heat.
Any excess energy can be sent to the geothermal circuit to regenerate the thermo-physical characteristics of the soil and guarantee its performance over time.

The photovoltaic system in combination with the heat production system collaborates in the supply of electricity necessary to power the heat pump and the on-board auxiliaries. When production is high, an electric battery accumulates the surplus energy, and sends it to the utilities via an inverter.

Our panels:

icon
Improved shading performance thanks to the 2 independent sections of the module
icon
Reduces the possibility of micro-cracks, snail burrs and corrosion caused by moisture, sand and salt spray
icon
Glass-glass structure with black frame and high load capacity
icon
2×2 mm tempered glass for maximum mechanical strength and transparency
icon
100% recyclable module

Our panels:

Power, efficiency and durability guaranteed

The Dynamo monocrystalline panel with high efficiency double glazing, guarantees a clean and continuous design, excluding the presence of frames.

Two sheets of tempered glass ensure maximum mechanical stability and exceptional resistance to atmospheric agents.

The use of glass instead of the backsheet offers an additional advantage, as this material does not propagate flames in the event of a fire.

The series of panels is classified in class 1, according to the Italian legislation for fire resistance.

Particularly suitable in contexts of high architectural value and areas with high snow load, it also allows a greater verticality of the systems, thanks to an extreme resistance to the forces of the winds.

Unparalleled performance

The cells perform more thanks to the greater resistance and the panel is less vulnerable to signs of wear, such as the so-called snail burrs.

The double glazing also makes the object 100% recyclable.

The panels chosen for the Cube have a nominal power of 190W with double tempered glass 2×2.5mm for greater performance.

Specifications

icon
Possibility of using the space inside the machine as a technical room
icon
High resistance to severe weather conditions
icon
10 years warranty

Specifications

Your renewable energy source

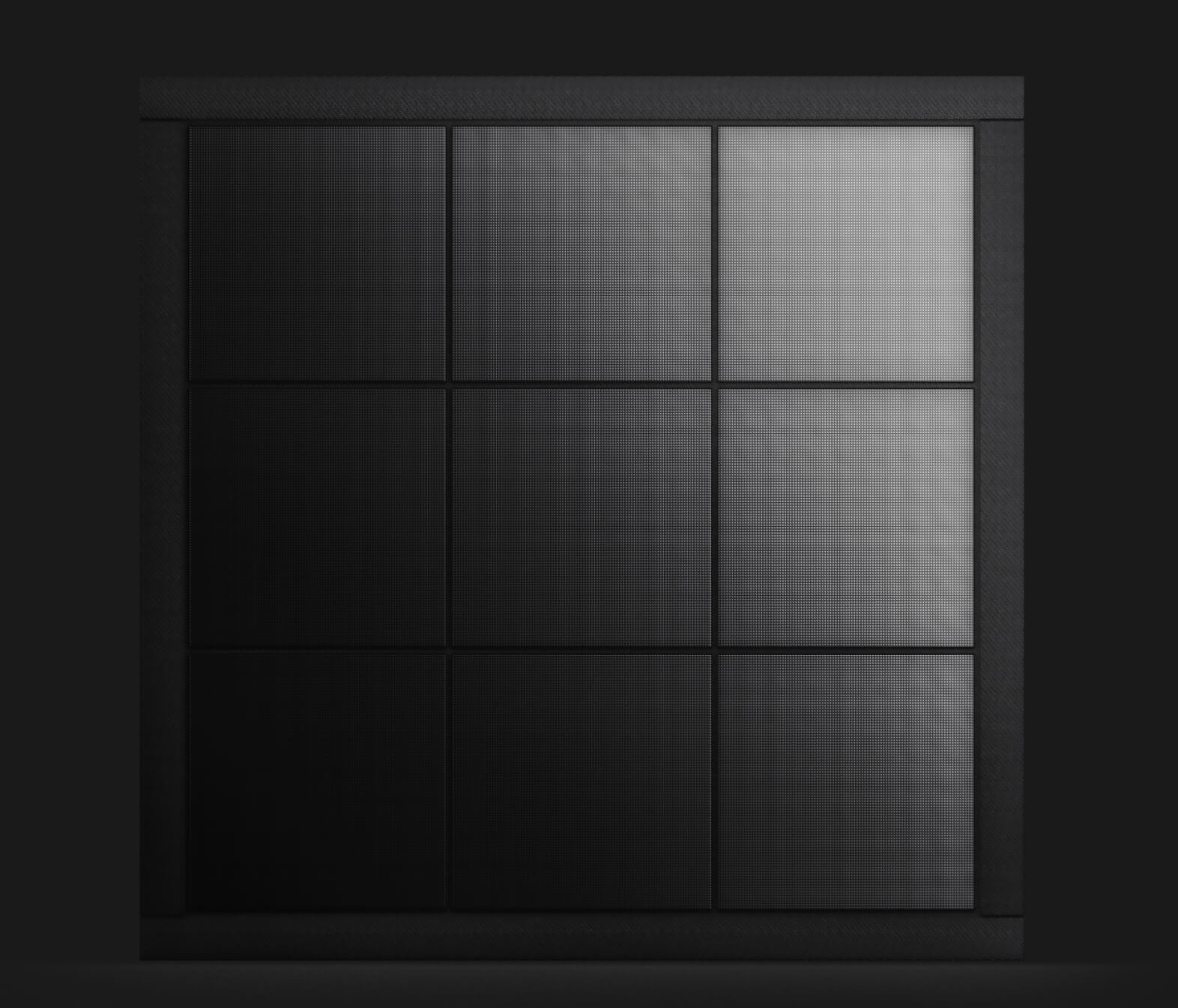

Dynamo Cubo is composed of a tubular metal frame with a square section (70x70x3), and its structure, designed to be dismantled and transported, is internal and is covered with solar panels and metal finishing elements. The welding is exclusively carried out in the factory to maintain all the standards of quality and efficiency.

The skeleton of the structure is made of a square of tubular positioned horizontally as a base and hooked by brackets to the reinforced concrete beaten of the slab. At the edges of the square are welded the interlocking elements that serve as a fastening to the four corner pillars. The structure closes with a second square of roof also wedged to the pillars with angular elements.

The internal space of the structure, correctly ventilated through micro-perforated surfaces in correspondence with the façade not exposed to solar radiation, can function as a real technical room.

Specifications

Electrical power

Electrical storage

Height

Width

Depth

CUBO M

Electrical power

Electrical storage

Height

Width

Depth

5.53 kWp

10 kWh

2500 mm

2500 mm

2700 mm

CUBO L

Electrical power

Electrical storage

Height

Width

Depth

12.60 kWp

10 kWh

3500 mm

3500 mm

3700 mm

CUBO XL

Electrical power

Electrical storage

Height

Width

Depth

23.98 kWp

20 kWh

4500 mm

4500 mm

4700 mm

Operating temperatures:

-4°F to 122°F / -20°C to 50°C

Installation:

Fixed to the ground
